DIN EN 853 1SN High Pressure Hydraulic Hose DN 10 3/8" WP 180 BAR 2615 PSI

  • 1
  • 2
  • 3

Brand Name : PASSION

Model Number : DIN EN 853 1SN

Certification : ISO 9001-2008, CE

Place of Origin : Zhejiang China

MOQ : 500m

Payment Terms : T/T, L/C, Western Union, Paypal, MoneyGram

Supply Ability : 30,000m per month

Delivery Time : Within 30 days after we receive advance payment

Packaging Details : Packed in weaving stripe, it also can be packed as per your requirement,

Item : Hydraulic Hose

Size : 3/8"

Color : Black

Standard : DIN

Reinforcement : A single high-tensile steel wire braided

Temperature : -40°C~ +100°C

Length : 100 meter/roll

Inner Tube : NBR

Cover : NBR

Couplings : Crimped Fittings series ****1-**-** and ferrules 00110

Contact Now

DIN EN 853 1SN High Pressure Hydraulic Hose DN 10 3/8" WP 180 BAR 2615 PSI



Construction:

Tube: NBR synthetic rubber.
Reinforcement : A single high-tensile steel wire braided.
Cover: NBR oil and weather resistant synthetic rubber.
Temperature: -40℃ - +100℃
Color: Black, Grey, Blue, etc.

Standard length: 100m, 50m, 40m, 20m.

Couplings: Crimped Fittings series ****1-**-** and ferrules 00110

specification of R1.pdf

Specifications:

Item Code

Inner Diameter

Outer Diameter

Working Pressure

Burst Pressure

Length

Measurement

Weight

inch

mm

mm

bar

psi

bar

psi

m

cbm/roll

kg/m

R1-05

3/16

5.0

12.0

250

3630

1001

14520

100

0.0425

0.20

R1-06

1/4

6.4

14.0

225

3270

902

13080

100

0.0454

0.24

R1-08

5/16

8.0

15.1

215

3120

860

12480

100

0.0487

0.28

R1-10

3/8

10.0

17.5

180

2615

721

10460

100

0.0735

0.36

R1-13

1/2

12.5

20.0

160

2320

640

9280

100

0.0487

0.45

R1-16

5/8

16.0

24.0

130

1890

521

7560

50

0.0784

0.51

R1-19

3/4

19.0

28.0

105

1530

422

6120

50

0.0686

0.65

R1-25

1

25.0

36.0

88

1280

353

5120

50

0.0949

0.96

R1-32

1 1/4

32.0

43.5

63

920

254

3680

20

0.121

1.25

R1-38

1 1/2

38.0

50.1

50

730

201

2920

20

0.1452

1.60

R1-51

2

51.0

63.6

40

580

160

2320

20

0.2197

2.20


Application:

Mainly used for conveying of petroleum or water based hydraulic fluids in mobile, machine tool,
agricultural applications etc.

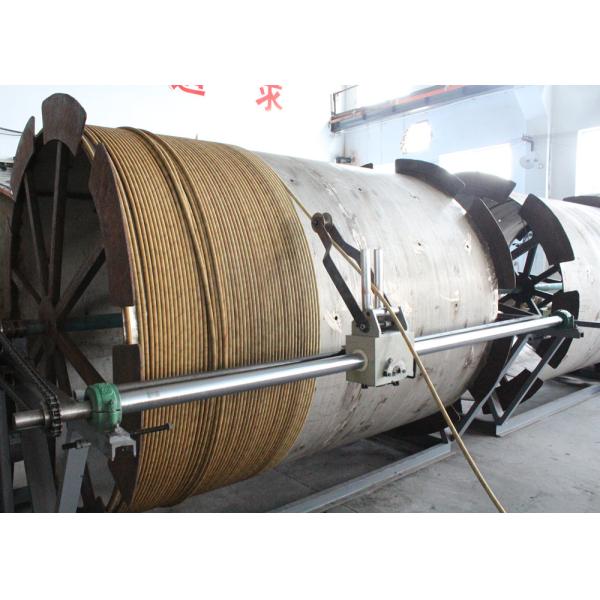

PASSION have large vulcanizing boiler which can vulcanize 6000m of hydraulic hoses at temperature

of 153℃ each time.

DIN EN 853 1SN High Pressure Hydraulic Hose DN 10 3/8" WP 180 BAR 2615 PSI

PASSION use imported sets of high speed automatic wire braiding machines from South Korea.

DIN EN 853 1SN High Pressure Hydraulic Hose DN 10 3/8" WP 180 BAR 2615 PSI

1 wire and 2 wire braided hose pass the impulse testing of 200,000 times; 4 wire spiral hose pass the impulse testing of 400,000 times.

DIN EN 853 1SN High Pressure Hydraulic Hose DN 10 3/8" WP 180 BAR 2615 PSI
